| Model | V5°/V5°α |
|---|---|
| Electrical characteristics | |
| Chemistry | LFP |
| Nominal Voltage | 51.2V |
| Voltage range | 47.5V~57.6V |
| Nominal capacity | 100Ah |
| Recommended charge/discharge current | 75A |
| Max. continuous charge/discharge current | 100A |
| Peak charge/discharge current | 101A~120A (3 min.); 121A~180A (15 sec.) |
| Common | |
| Connection options | V5°: PHOENIX M6 bolt V5°α: Amphenol SurLok Plus 8.0 mm |
| Chemistry | LFP |
| Communication protocol | CAN/RS485 |
| Dimensions (L x W x H) | 442*530*140 mm (3.2U) |
| Weight | 44 kg |
| Ambient temperature | -10°C~50°C/14°F~122°F |
| Cycles* | ≥6000 |
| Warranty | 10 years |

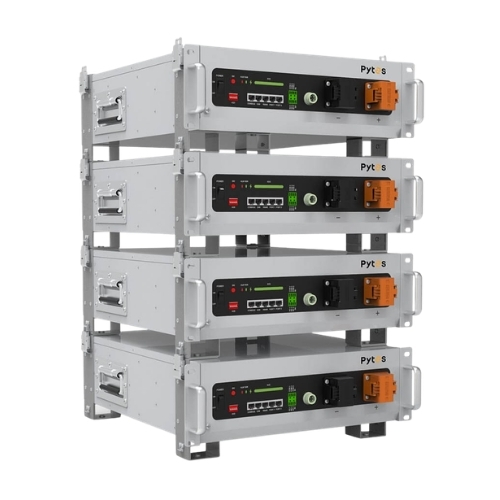

| Scalability | 16 pcs (81.92kWh) in a group 6 groups (491.52kWh) in a system w/a Hub |
| Mounting Method | Wall / Ground (with optional battery tray) |
| Heating pad (Integrated) | Temperature rising: 8°C/ч |
| Additional | |
|---|---|
| WIFI connection | Remote monitoring and upgrade |
| Heating | Temperature rising: 10°C/ч Working temperature: -18°C~10°C |
| Certificates | |
|---|---|
| UL9540 Ed.2 (2020), UL9540A, UL1973, CEC, SGIP, CE, IEC62619, UN38.3 |
